Specifications of 4-wheel AC 1.0-3.0T Electric Forklift
General Manufacturer SINOLIFT AC 1.5T-3.0T Electric Forklift
Model CPD15J CPD20J CPD25J CPD30J
Power type Battery
Rated capacity kg 1500 2000 2500 3000
Load center mm 500 500 500 500

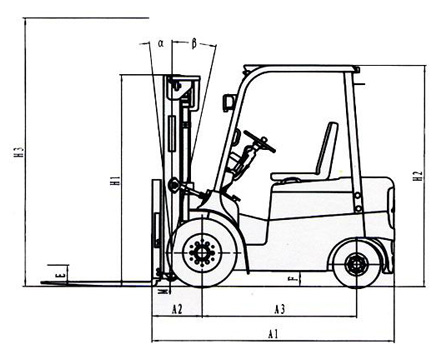

Dimensions Lift height        (H) mm 3000 3000 3000 3000
Free lift        (H40 mm 162 140 140 145
Fork size        (L×W×T) mm 920×120×40 1070×120×40 1070×120×45 1070×125×45
Fork outside spread (Min. /Max. )      (B4) mm 200/980 240/1020 240/1020 260/1100
Mast tilt angle (forward/backward)       (α / β) deg 6/12 6/10 6/10 6/10
Front ovehang        (A2) mm 436 484 484 454
Overall dimensions Length to face of fork      (L10 mm 2056 2349 2381 2481
Overall width       (B1) mm 1090 1265 1265 1265
Mast lowered height     (H1) mm 1995 2040 2040 2040
Mast extended height         (H3) mm 4038 4270 4270 4270
Overhead guard height      (H2) mm 2162 2125 2125 2125
Turning radius         (R) mm 1820 2050 2100 2230
Min.  right angle aisle width      (X) mm 1810 2110 2150 2280

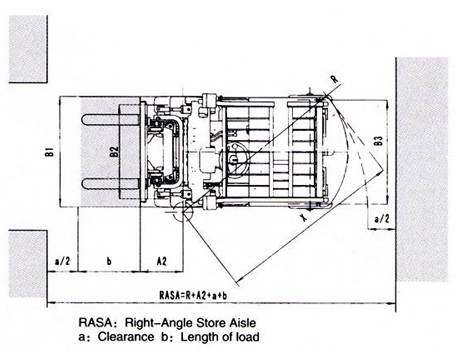

Min.  right angle stacking aisle width         (RASA) mm 3370 3715 3755 3915
Performance Travel speed (no load / full load) km/h 15/13 14/12 14/12 14.5/12
Lifting speed (no load / full load) mm/sec 400/300 420/300 420/300 420/280
Max.  pull force (full load) KN 6.5 8 8 10
Services weight kg 3120 4160 4360 4850
  % 15 10 10 10
Wheel & Tire Tyre Front 6.50-10-10PR 23×9-10-18PR 23×9-10-18PR 23×9-10
Rear 5.00-8-8PR 18×7-8-14PR 18×7-8-14PR 18×7-8
Tread Ront      (B2) mm 890 1040 1040 1040
Rear    (B3) mm 920 950 950 980
Wheelbase      (Y) mm 1250 1500 1500 1630
Ground clearance (no load / full load) Mast   (M) mm 105/95 105/85 105/85 105/85
Fram    (F) 105/95 140/120 140/120 140/120
Power & Control Battery  Model D-440B 7DB700 7DB700 5VBS500
Voltage v/Ah 48/440 48/700 48/700 80/500
Battery Weight kg 760 1180 1180 1450
Motor Drive motor Model MT708B MT754B MT754B MT776B
Rated power kw/rpm 8/1600 8/1300 8/1300 13/1500
Lifting Motor Model MT719B MT325B MT325B MT800B
Rated power kw/rpm 10/2450 15/2200 15/2200 22/2100
Controller L Italian SME AC separate excitation controller

Remark:
1. Special lifting height available.
2. Attachment available.
3. The specification in the table are for standard models only. For further information, please contact us.
