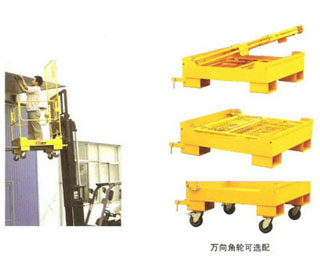

Equipped with safety pin in the open door columns, antiskid table-board and bottom osculum, impact-proof head guardrail, ensure safety.
Manned platforms through security long pin and chains were fixed on the fork, ensure not slip.
Easy to dismantle and installation, less storage space.
The European Union pm28 and gn48 safety and health standards.
Optional universal casters, convenient to move. Optional box maintenance tools.
Used in upper air work and maintenance work.
Specifications of NK Fork Lload Aerial Work Platform:
Model | NK30A | NK30B | NK30C | |
---|---|---|---|---|
rated load weight | (kg) | 300 | 300 | 300 |
manned platform size (length*width) | (mm) | 950×950 | 1200×1000 | 1000×1000 |
develop height | (mm) | 2000 | 2000 | 2000 |
fork space(inner side) | (mm) | 420 | 747 | 471 |
Single fork size(length*width) | (mm) | 200×100 | 200×100 | 200×100 |
Net weight | (kg) | 99 | 120 | 108 |
