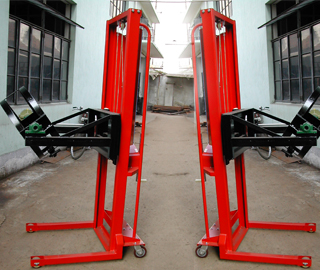

Introducing a new range of Industrial drum lifter featuring easy raising and lowering properties, as well as portability, with various wheel and power options. They are kind to the operator and reduce fatigue.
Specifications of COJ0.35B Winch Drum Tilter:
| Model | COJ0.35B | ||
|---|---|---|---|
| Rated capacity | Kg | 350 | |
| Max. lifting height | mm | 1500 | |
| Load center | mm | 415 | |
| Raised speed | mm/times | >25 | |
| Lowered speed | Controllable | ||
| Overall dimension | L | mm | 1400 |
| W | mm | 750 | |
| H | mm | 1900 | |
| Width of fork | mm | 800 | |
| Adjustable width of fork | mm | 200-440 | |
| Max. ground clearance | mm | 30 | |
| Front wheel | mm | Ø100 | |
| Rear wheel | mm | Ø200 | |
| Service weight | Kg | 220 | |
