Special design for handling all size of drums.
All electric control, ideal for lifting, rotating and stacking drum or other round goods such as paper roll.
Lift height up to 2800mm at vertical 2200mm at horizontal, Max. Lifting Cap:500kg.
Ride-on-platform driver, stepless drive speed control, three separate hydraulic hand controls.
Easy and convenient to operate.

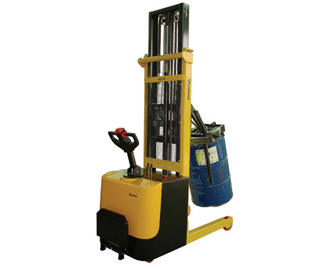

Specifications of WDS50-30 Electric drum Truck:
|Lifting Height (mm)||2800|
|Rotating Circle degree||0~90|
|Moving Speed (loaded)||0-4 km/h|
|Moving Speed (Un-loaded)||0-6 km/h|
|Drum Lifting Speed (mm/s)||80|
|Drum Rotating Speed (mm/s)||50|
|Driving Motor||DC24V/0.9 KW|
|Lifting and Rotating Motor||DC24V/2 KW|
|Overall Size (mm)||1750X800X2080|
|Service Weight (kg)||485|
