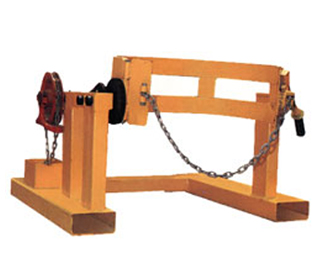

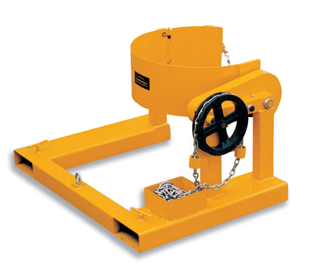

Just slide forks into pockets, tighten screw locks, cinch saddle to drum and Converts your fork truck into a drum handler.
DR series Forklift-Carrier can easily lift, transport, raise and tilt loaded drums.
The 10’ pull-chain loop allows controls dumping from the driver’s seat.
It has 30:1 ratio and with standard fork pockets with 165mm(6-1/2”) width and 63.5mm(2-1/2”) height.
Specifications of DR Drum Rotator:
Model | DR360 | DR680 | DR500A | DR500B |
---|---|---|---|---|
Capacity | 364kg/800lbs, Steel Drum | 680kg/1500lbs, Steel Drum | 500kg/1100lbs, Steel Drum | 500kg/1500lbs, Steel Drum |
Drum Size | 572mm (22.5") Diameter, 210 Liters(55 gallon), | 572mm (22.5") Diameter, 210 Liters(55 gallon), | 572mm (22.5") Diameter, 210 Liters(55 gallon), | 572mm (22.5") Diameter, 210 Liters(55 gallon), |
Fork Opering | 24-2/5" (620mm) apart | 24-2/5" (620mm) apart | 24-2/5" (620mm) apart | 24-2/5" (620mm) apart |
Fork Pocket | 2-1/2"high x 7 " wide (65x180mm) | 2-1/2"high x 7 " wide (65x180mm) | 2-1/2"high x 7 " wide (65x180mm) | 2-1/2"high x 7 " wide (65x180mm) |
Net Weight | 70kg/154 lbs | 97kg/214lbs | 96kg/211lbs | 106kg/238lbs |
