1. Reliable, sturdy. torsion-resistant due to its extremely strong high quality steel profile Germany standard WAGNER painting system ensures best powder coating and painting quality.
2. All pivots points are greased ensures excellent maneuverability with effortless steering The cheomed bearing bushes and joints ensure quiet running properties and particularly long service lift.
3.1KG=2.2LB 1INCH=25.4MM.

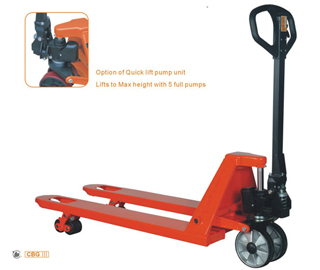

Specifications of CBG:
| Item/Type | CBG | CBG/QL20H | CBG/QL20L | |
|---|---|---|---|---|
| Capacity Q | kg | 2000/2500 | 2000 | 2000 |
| Min. fork height h | mm | 85/75 | 85 | 75 |
| Max. fork height h1 | mm | 200/190 | 200 | 190 |
| Steering wheel | mm | Φ200x50/Φ180x50 | Φ180x50/Φ200x50 | Φ180x50 |
| Load roller Single | mm | Φ80x93/Φ74x93 | Φ80X93 | Φ74X93 |
| Load roller Tandem | mm | Φ80X70/Φ74X70 | Φ80X70 | Φ74X70 |
| Size of fork e*s | mm | 160x60/ 150x50 | 160x60 /150x50 | 160x60 /150x50 |
| Width overall forks B | mm | 520/550/685 | 520/550/685 | 520/550/685 |
| Fork length I | mm | 800/900/1000/ | 800/900/1000/ | 800/900/1000/ |
| 1100/1150/1220 | 1100/1150/1220 | 1100/1150/1220 |
