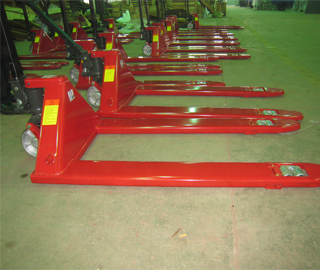

1. The low profile hand pallet truck with a low clearance has been developed for handling products like low line crates that only counterbalanced forklifts can move.
2. 1T Cap. Lowered fork height is 35mm; 2T Cap. lowered fork height is 51mm.
3. Tandem steel wheel to be used.
Specifications of NPSL Super Low Pallet Truck:
| Item/Type | NPSL25-Low-51mm | NPSL10-Supper Low | |
|---|---|---|---|
| Capacity Q | kg | 1500 | 1000 |
| Min. fork height h | mm | 51 | 35 |
| Max. fork height h1 | mm | 165 | 90 |
| Steering wheel | mm | Ø180x50 | Ø160x50 |
| Load roller Single | mm | Ø50x93 | |
| Load roller Tandem | mm | Ø50x70 | Ø34x58 |
| Size of fork e*s | mm | 160x37 | 160x30 |
| Width overall forks B | mm | 540 / 685 / 838 | 530/685 |
| Fork length I | mm | 1150/1220 | 1120 |
