1. GE, CE approved.
2. Special request, stainless steel, OEM, ODM order can available. Color optional.
Feature:
1. Entry/Exit Roller, more freely travel.
2. Turning around at an angle of 130 degree will not lead to any overturning.
3. Rocker arm assembly is made of 45# steel forging.
4. All joint pins are heat treated and coated with chromium or nickel.
5. Good looking & excellent appearance.
6. Both pumping piston and lifting piston have been tested against salt corrosion for 120 hours.
7. No deformation when under heavy loads for a long time.

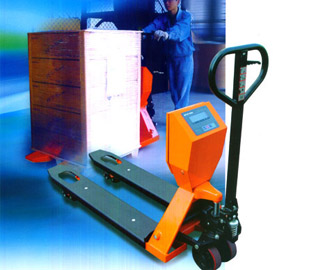

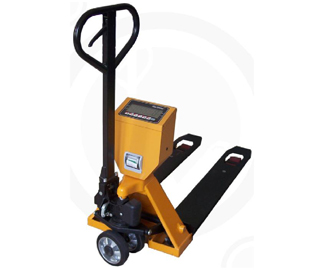

This Hand Pallet truck with scale combines the controlling function of a very accurate weighing system with the mobility and flexibility of a hand pallet truck. You weigh pallets and containers during transport, at the place of the handling. You save time when checking incoming and outgoing goods.
Specifications of TLD Scale Pallet Truck:
STYLE | TL-D | |
---|---|---|
Capacity | (kg) | 2000 |
Lowered fork height | h1(mm) | 85 |
Tootal lift height | h2(mm) | 200 |
Fork length | L(mm) | 1150/1220 |
Width over the forks | W(mm) | 570, 705 |
Steering wheel | A(mm) | Φ180/Φ200 |
Fork wheel | B(mm) | Φ74 |
Self weight | (kg) | 125~130 |
