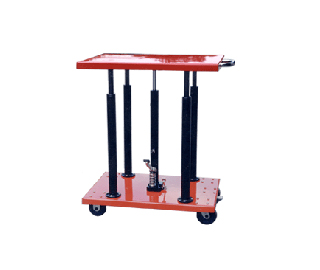

Built for fast and efficient lifting, transporting and positioning of equipment and materials. Long lasting hydraulic pump is foot operated providing flexibility and portability.
Foot-operated hydraulic lift tables for heavy duty shop.
Auto two speed manual hydraulic foot pump for maximum operation comfort and producing.
DC electric motor to automatically raise and lower the platform is available.
All models includes:casters, two rigid and tow swivel with wheel brakes.
1, 2 & 4 Post Models Available.

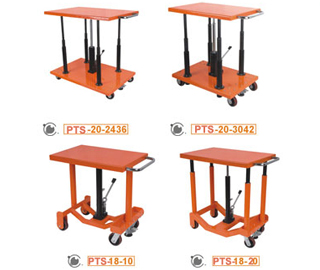

Specifications of PTS Post Table Truck:
| Model | PTS-20-2436 | PTS-20-3042 | PTS12-10/PTS18-10 | PTS12-20/PTS18-20 | PTS12-40/PTS18-40 | |
|---|---|---|---|---|---|---|
| Load Capacity | kg/lbs | 100kg 2200lb | 100kg 2200lb | 455kg 1000lb | 910kg 2200lb | 1820kg 4000lb |
| Lowest Height(mm) | mm | 540 | 670 | 635/787 | 635/787 | 635/787 |
| Max. Height(mm) | mm | 1250 | 1500 | 940/1245 | 940/1245 | 940/1245 |
| Table. Dimensions(mm) | mm | 610x915 | 762x915 | 508x762 | 610x915 | 610x915 |
| Net Weitht(kg) | kg | 145 | 175 | 72/78 | 96/101 | 116 |
| Packing Dimensions(mm) | mm | 930x780x550 | 930x780x680 | 810x520x800 | 980x630x800 | 980x630x800 |
| Qty"/1x20" FCL | pcs | 36 | 28 | 87/58 | 54/36 | 54/36 |
