1. No slings or chains necessary.
2. Crane operator will not need to leave cab of lorry or crane.
3. Forks will remain horizontal when loaded and unloaded.
4. Adjustable fork width.
5. Adjustable height.

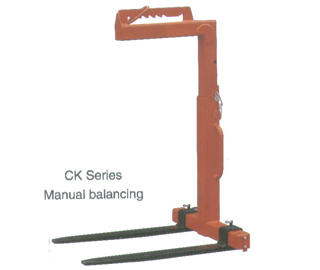

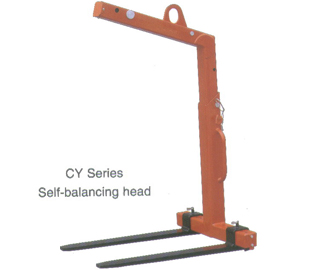

Specifications of CK CY Crane Fork
| Model | CK10 | CK20 | CK30 | CK50 | CY10 | CY20 | CY30 | CY50 | |
|---|---|---|---|---|---|---|---|---|---|
| Work Load Limit | WLL (t) | 1 | 2 | 3 | 5 | 1 | 2 | 3 | 5 |
| Adjustable Fork Width | b (mm) | 350-900 | 400-900 | 450-900 | 530-1000 | 350-900 | 400-900 | 450-900 | 530-1000 |
| Hook Height | h1 (mm) | 1390-1890 | 1640-2340 | 1670-2370 | 1700-2400 | 1420-1920 | 1655-2355 | 1720-2420 | 1710-2410 |
| Effective Height | h (mm) | 1100-1600 | 1300-2000 | 1300-2000 | 1300-2000 | 1100-1600 | 1300-2000 | 1300-2000 | 1300-2000 |
| Fork Length | L (mm) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Fork Cross | D (mm) | 100x30 | 120x40 | 120x50 | 150x60 | 100x30 | 120x40 | 120x50 | 150x60 |
| Overall Size | L (mm) | 1120 | 1140 | 1140 | 1160 | 1120 | 1140 | 1140 | 1160 |
| W (mm) | 920 | 920 | 920 | 1020 | 920 | 920 | 920 | 1020 | |
| H (mm) | 1390 | 1640 | 1670 | 1700 | 1775 | 1775 | 1850 | 1850 | |
| Net Weight | (kg) | 130 | 200 | 250 | 370 | 140 | 220 | 280 | 380 |
