Home » Products » Pallet Stacker » Counter Weight Stacker » CPD-SB(II) Counter Weight Stacker

Detailed parameters and tables

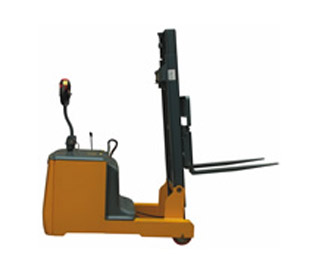

Features of CPD-SB(II) Counter Weight Stacker

Counterbalance Stacker – CPD-SB is our new style and comes into the market in the year 2012. Counter balance design special available for nonstandard rack and narrow aisle. The mast could be forward or backward and this is convenient for the goods loading or unloading. It sells well in Japan.
- - There is no bolster leg.
- - Adjustable fork width is suitable for different pallet.
- - Original Germany made mast and CURTIS controller to keep the high quality and good performance.
- - Lowering speed make convenient unloading.

Specifications of CPD-SB(II) Counter Weight Stacker:

Model			CPD-1.0SB(II)
Load Capacity Q		kg	1000
Lifting Height h3		mm	2500
Load Center C		mm	400
Free Lift heihgt h1		mm	140
Height with Mast lowered h2		mm	1862
Heihgt With Mast Extented h4		mm	3310
Handle Height h5		mm	1135~1560
Min. Heihgt h6		mm	80
Clearnance h7		mm	80
Overall length L		mm	2280
Overall Width B		mm	840
Wheelbase Y		mm	1132
Min. Turning Radius Wa		mm	1350
Foks size ( s×e×l)		mm	32×100×900
Forkwidth b1		mm	200~560
Min. Right angle stacing aisle width ast		mm	≥2520
Mast Tilt	Frontward α	( °)	2
Mast Tilt	Backward β	( °)	5
Gradabeality		%	8
Front wheel		mm	Φ200×80
Rear Wheel		mm	Φ260×80
Lifting Speed	Non-laden	mm/s	140
Lifting Speed	Full-load	mm/s	100
Max. drive speed		km/h	6
Drive motor		kw	1.2
Lift Motor		kw	2
Battery		AH/V	240/24
Service Weight		kg	1460
