Home » Products » Pallet Stacker » Reach Stacker » WRP Reach Stacker (new)

Detailed parameters and tables

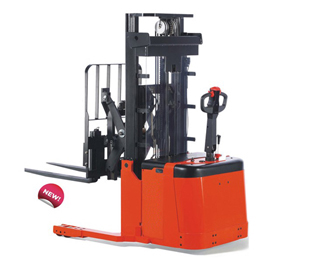

Features of WRP Reach Stacker (new)

1. Italian Hydrapp Hydraulic system ensures high capacity, stable performance.
2. Safety shut-off valve and slow lowering function ensures operating safety.
3. Smart and compact design, high quality European mast.
4. Tilting up to 2 degree, down to 4 degree, perfectly meet need for cargo loading and unloading.
5. Scissor type reach truck with controllable speed makes it convenient and stable to operate.
6.24V DC power lifting and travel system.
7. Compact Pantograph reach mechanism on the forks.
8. The simple mounting frame structure enables quick assembly.
9. The battery case is railed on the sideway for handy shifting.
10. The operation is simple with flexible maneuverability.

Specifications of WRP Reach Stacker (new):

Charac	Model		WRP	WRP	WRP	WRP	WRP	WRP	WRP	WRP
teristic	Model		1020	1025	1030	1035	1040	1045	1050	1055
	Power(battery, diesel, petrol,		electric
	natural gas, manual)		electric
	standing, Manner ofoperation:hand,		standing
	pedestrian, seated, sorting-picker		standing
	Load Capacity	Q(kg)	1000
	Load Centre distance	c(mm)	500
	Load Centre distance	x(mm)	375
	Wheelbase	Y(mm)	1290					1380
Weight	Weight(including battery)	kg	1350	1385	1420	1450	1480	1850	1950	2050
	Axle loading, laden front/rear	kg	810/570		830 /590	880/600		1130 /720	1210 /740	1280 /770
	Axle unloading, unladen front/rear	kg	530 /1870		540 /1880	550 /1930		1000 /1850	1040 /1910	1080 /1970
	Axle loading, unladen front/rear	kg	1000 /1390		1020 /1420	1040 /1440		1230 /1620	1280 /1670	1330 /1510
Wheel	Tyres(rubber, highelastomer,		polyurethane
	pneumatic, polyurethane		polyurethane
	Wheel size drive side	mm	250x82
	Wheel size load side	mm	150x82
	wheel, number(x=drive wheel)		1+2
	Track width(front)load side	b10(mm)	650					790
	Track width(rear)load side	b11(mm)	980
Dimen	Fork/mast tilting angle forward/backward	Grad	2/5
sions	Lower mast height	h1(mm)	1615	1865	2115	2365	2615	2125	2385	2545
	Free lift height	h2(mm)	-	-	-	-	-	1575	1700	1825
	Lift height	h3(mm)	2000	2500	3000	3500	4000	4500	5000	5500
	Extended mast height	h4(mm)	3070	3570	4070	4570	4920	5570	6070	6570
	Overall length	l1(mm)	-	-	-	-	-	-	3095	-
	Length between fork backrest and vehicle body	l2(mm)	1125
	Overall width	b1Ib2(mm)	950/1100-1200
	Fork size	s/e/l(mm)	40x100x950
	Moveforward distance	l4(mm)	500
	Ground clearance, center of wheelbase	m2(mm)	65
	Aisle width forpallets 1000x1200	Ast(mm)	2714					2814
	Aisle width for pallets 800x1200 lengthways	Ast(mm)	2800					2900
	Swerve radius	Wa(mm)	2000					2050
Perfor	Travel Speed Load/without load	Km/h	5/5.5					5/5.5
mance	Lifting speed Load/without load	m/s	95/120
	Lowering speed Load/without load	m/s	150/120
	Max Gradeability Load/without load	%	5/12
	Brakes		electriomagentic
Motor	Driving motor power	kW	0.9					1.2
	Lifting motor	kW	3
	Battery voltage, normal capacity K5	V/Ah	24/320
	Battery weight	kg	275
	Battery Dimension(L×W×H)	mm	812x270x535
Other	Noise level at operator’s ears DIN12053	dB(A)	67
