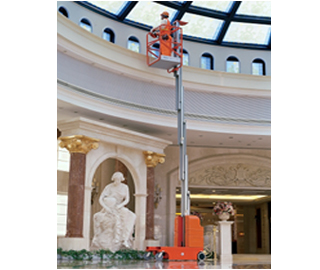

The product has passed the CE certification and is mainly applied in power, communication, airport, conference and exhibition center, supermarket, factory, station, subway station, etc. It is only for one persons working.
1. It is powered by DC, can move automatically, has the function of exchanging low and high speeds, can be controlled manually and requires no manual push.
2. The driving motor has the automatic braking function.
3. It can climb to a certain gradient.
4. It has special design for moving on unleveled floor and tilt alarm.
5. The malfunction can be diagnosed and displayed in codes. The emergent drop will be locked.
6. The electricity recharge is protected. In recharging condition, the operation is stopped.

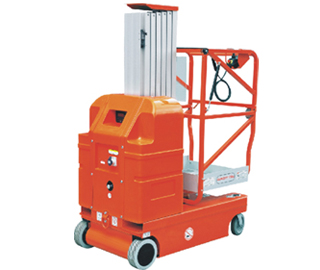

Specifications of AMWP1000 Self-propelled Mast Aerial Work Platform:
Model No. | AMWP6-1000 | AMWP7.5-1000 | |
---|---|---|---|
Max. Platform Height | mm | 6000 | 7500 |
Max. Machine Height | 7600 | 9000 | |
Min. Platform Height | 510 | ||
Ground Clearance | 50 | ||
Lift Rated Capacity | kg | 150 | 125 |
Platform Extend Capacity | Free Set | ||
Platform Size | mm | 780×700×1150 | |
Platform Extend Length | Free Set | ||
Max. Drive Speed (Platform Stowed) | km/h | 3~4 | |
Max. Drive Speed (Platform Elevated) | 0.6-1 | ||
Min. Turning Radius | mm | 1350 | |
Max. Travel Grade | % | 15-20 | |
Caster Size | in | 8 | |
Driving Wheel Size | mm | ф230-250×80 | |
Driving Motor | v/kw | 2×24/0.4-0.5 | |
Lifting Motor | 24/ 2 | ||
Aneroid Battery | v/Ah | 2×12/100 | |
Charger | v/A | 24/ 12 | |
Pothole Protection System | Automechanism | ||
Overall Length | mm | 1360 | |
Overall Width | 790 | ||
Overall Height | 1980 | ||
Overall Net Weight | kg | 850 | 880 |
