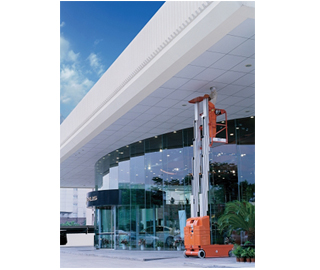

The product is mainly applied in power, communication, airport, conference and exhibition center, supermarket, factory, station, subway station, etc. It is for two persons working toge ther.
1. It is powered by DC, can move automatically, has the function of exchanging low and high speeds, can be controlled maunally and requires no manual push.
2. The driving motor has the automatic braking function.
3. It can climb to a certain gradient.
4. It has the function of protection of floor pit and tilt alarm.
5. The malfunction can be diagnosed and displayed in codes. The emergent drop will be locked.
6. The electricity recharge is protected. In recharging condition, the operation is stopped.

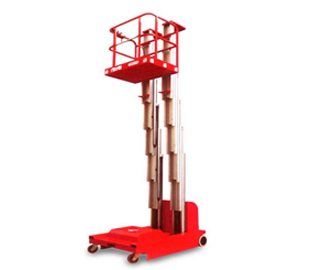

Specifications of AMWP2000 Self-propelled Work Platform:
|Max. Platform Height||mm||7500||9000|
|Max. Machine Height||mm||9000||10500|
|Min. Platform Height||mm||530|
|Lift Rated Capacity||kg||200||150|
|Platform Extend Capacity||kg||Free Set|
|Platform Extend Length||mm||Free Set|
|Max. Drive Speed (Platform Stowed)||km/h||3/4|
|Max. Drive Speed (Platform Elevated)||km/h||0.6-1|
|Min. Turning Radius||mm||1500|
|Max. Travel Grade||%||15-20|
|Driving Wheel Size||mm||ф230-250×80|
|Lifting Motor||v/kw||24/ 2|
|Pothole Protection System||v/A||Automechanism|
|Overall Net Weight||kg||1100||1250|
