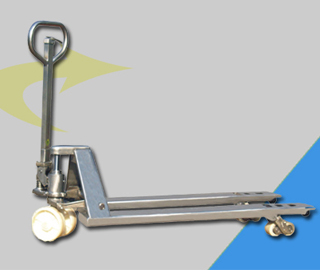

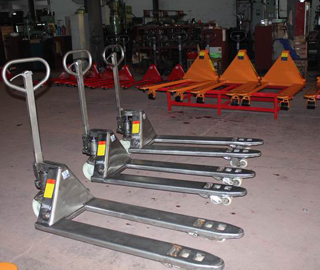

1. This stainless steel pallet truck is designed for use in environments such as clean rooms, laboratories, wash down and corrosive applications. This 100% stainless steel truck is ideal in industries such as food, fish, slaughter houses, salt water and chemical.
2. The entire frame and pump is manufactured from 304 stainless. Nylon wheels are standard to withstand water exposure. Wheel bearings are double shielded for protection.
3. Capacity is 4500 lbs. Fork width is 6.25”. Steer wheels are 7” in diameter and load wheels are 2.75” in diameter. Lowered height is 3”. Entry and exit rollers standard.
Specifications of NPS Stainless Steel Pallet Truck:
| Model | NPS20 | NPS25 | |
|---|---|---|---|
| Capacity Q | kg | 2000 | 2000 |
| Min. fork height h | mm | 85 | 75 |
| Max. fork height h1 | mm | 200 | 190 |
| Steering wheel | mm | Φ200x50 | Φ180x50 |
| Load roller Single | mm | Φ82x93 | Φ74x93 |
| Load roller Tandem | mm | Φ82x70 | Φ74x70 |
| Size of fork | mm | 160x60 | |
| Width overall forks B | mm | 520 / 540 / 685 | |
| Fork length I | mm | 1000/1100/1150/1220 | |
