1. Transports loads on uneven ground:
- - Strong & light tubular steel framing.
- - Little maintenance required.
- - Great maneuverability.
- - Hydraulic fork lift with inbuilt hand pump.
- - Adjustable width over fork.
- - Driving axle on self-lubricating bearings.
- - Wheels fitted onto sealed bearings.
- - Pneumatic tyres.
- - Easy handling.
- - Minimal pulling / lifting effort.
- - Optional parking brake.

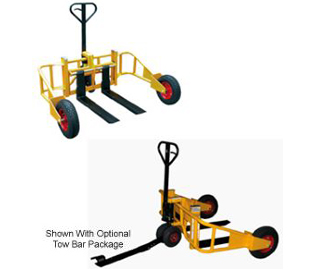

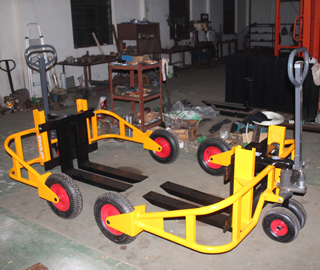

This special terrain hand pallet truck is the latest edition to our range designed for applications such as builders yards, garden centers or out on site where there is only an occasional need for moving pallets by forklifts or where no ordinary forklift or even pallet truck can go (for example rooftops where forklifts aren't allowed). Thanks to its large wheels and straddle forks arrangement it can be used for any type of pallet on uneven ground.

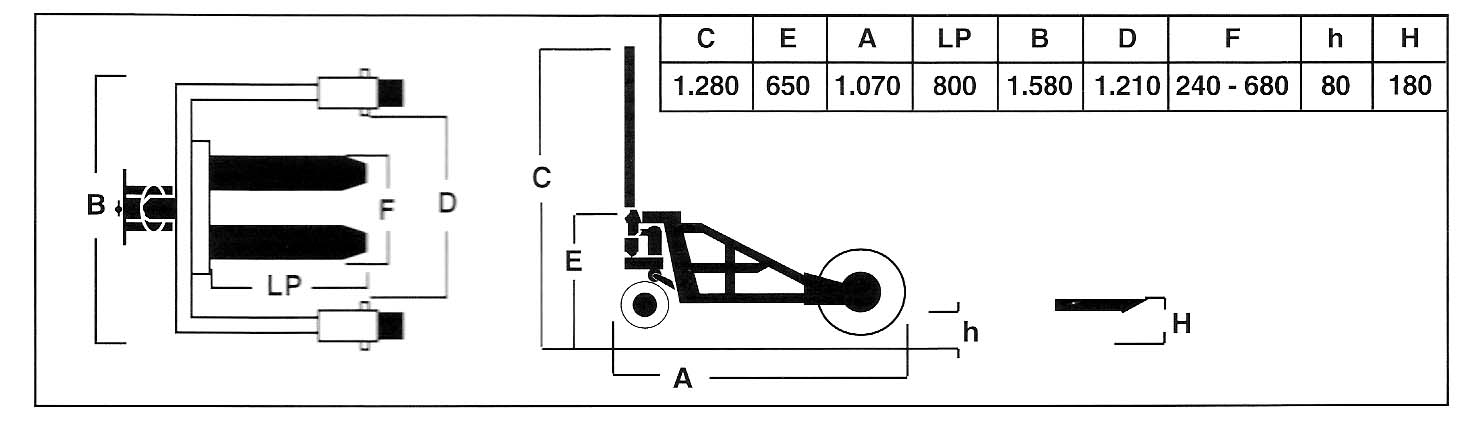

Specifications of NPT Terrain Pallet Truck:
Model | NPT10-1 | NPT10-2 | |
---|---|---|---|
Rated Capacity | kg | 1100 | 1100 |
Length of Fork (mm) *1 | LP mm | 800 | 800 |
Width of Straddle (Interior) | D mm | 1040 | 1210 |
Width of Straddle (Exterior) | B mm | 1300 | 1470 |
Weight | kg | 140 | 148 |
Radius | degree | 180° | 180° |
Handle Wheels (mm) | mm | 270 | 270 |
Load Wheels (mm) | mm | 437 | 437 |
