Code: RTT12

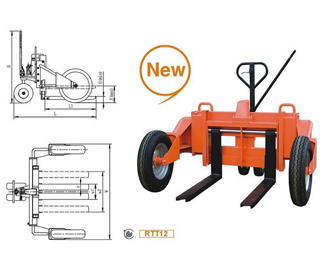

1200kg capacity adjustable forks hand pallet truck.
Ideal for use on rough surfaces such as building sites, Garden centres and any external applications.
1200 kg capacity
1. Fitted with Pneumatic tyres for use on undulating surfaces.
2. Powder coated heavy duty steel frame.
3. Fitted with adjustable 860mm long forks.
4. lower down to a Minimum fork height of 52mm.
5. Ideal for open and closed pallets.
6. Hand release trigger.
7. Easy to manoeuvre with 210 degrees turning radius.
8. Low maintenance pump unit.
9. Hand release trigger to control the rate of descent.
10. For Health and Safety information, Please contact us.

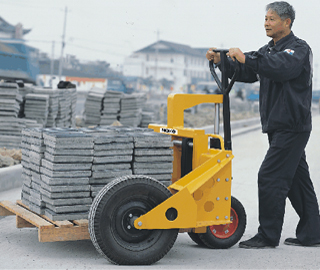

This special terrain hand pallet truck is the latest edition to our range designed for applications such as builders yards, garden centers or out on site where there is only an occasional need for moving pallets by forklifts or where no ordinary forklift or even pallet truck can go (for example rooftops where forklifts aren't allowed). Thanks to its large wheels and straddle forks arrangement it can be used for any type of pallet on uneven ground.

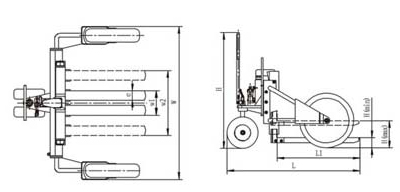

Specifications of RTT Terrain Pallet Truck:
Model | RTT12 | |
---|---|---|
Capacity Q | kg | 1200 |
Fork Length L1 | mm | 860 |
Fork width e | mm | 100 |
Adjustable Fork Width w1-w2 | mm | 212-735 |
Max. Fork Height H (Max) | mm | 223 |
Min. Fork Height H (Min) | mm | 53 |
Max. Pump Stroke | mm | 170 |
Overall Size LxWxH | mm | 1375x1605x1200 |
Front Wheel Dia. x Width | mm | 550x132 |
Rear Wheel Dia. x Width | mm | 300x80 |
Width inside the front wheel | mm | 1277 |
Net Weight | kg | 235 |
Minimum Qty. | n | 7 purchase |
Rough Terrain Truck
1KG=2.2LB 1INCH=25.4MM.
