Home » Products » Hydraulic Platform and Table Lift » Hand Table Truck » CYT series Hand Table Truck

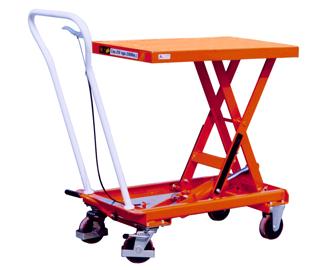

CYT series Hand Table Truck

Features of CYT series Hand Table Truck

CYT HYDRAULIC SCISSOR LIFT TABLES.
1. Rugged steel construction to handle heavy transporting, lifting and positioning work.
2. Table is easily raised by hydraulic foot pedal. Rolls on 2 fixed and 2 swivel casters for pinpoint positioning. Foot operated locks on swivel casters.
3. Conforms to EN1757-4.
Option:
1. All lifting table trucks have two kinds of lowering systems wire or nut.
2. Handle with plate protection.
3. Handle with rubber.

Specifications of CYT series Hand Table Truck:

Model		CYT150	CYT150A	CYT200	CYT300/CYT500	CYT300A/CYT500A	CYT800	CYT1000
Load Capacity	kg	150	150	200	300/500	300/500	800	1000
Max. Height	mm	740	740	1000	900	900	1000	1000
Min. Height	mm	225	225	340	280	340	420	380
Table Dimension	mm	700×450×35	740×450×35	1000×500×35	815×500×50	855×500×50	1000×510×55	1016×515×60
Handle Height	mm	935	935	1056	1000	970	996	960
Stroke to Max. Height	stroke	≤25	≤25	≤32/≤25	≤32/≤45	≤70	≤60	≤55
Wheel Diameter	mm	100	100	200	127	127	150	150
Packing Size	mm	820×480×265	1140×620×460	880×480×265	960×530×420	950×530×390	1190×630×460	1190×630×420
Self-Weight	kg	44	44	60	75/85	75/85	115	115

Remark: *A=with foldable handle.
