Simple, compact desing.
Fully complying product with super large table.
Manual operation.
All tables fitted with service props.
Simple to add rollers etc.
Fully serviceable components.
Fast moving product line.

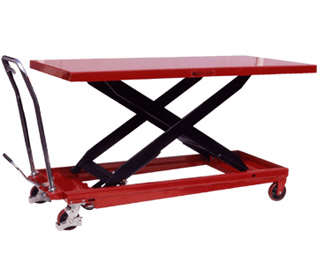

Specifications of CYT-B series Hand Table Truck:
| Model | CYT500B | CYT1000B | |
|---|---|---|---|
| Capacity | kg | 500 | 1000 |
| Min. table height | mm | 290 | 360 |
| Max. table height | mm | 915 | 1360 |
| Dimension of table | mm | 1600x810 | 2035x750 |
| Caster wheel | mm | Φ125x40 | Φ180x50/Φ80x40 |
| Foot pedal cycles to max. height | ≤55 times | ≤200 times | |
| N. W | kg | 154 | 198 |
| Height of handle from the ground | mm | 975 | 1000 |
