Most widely used in various fields such as machinery, construction, automotive industry. etc.
A full range of capacity from 2 to 100 ton.
All models work both in vertical and horizontal position.
When used in horizontal position, pump must be in the position as illustrated here.

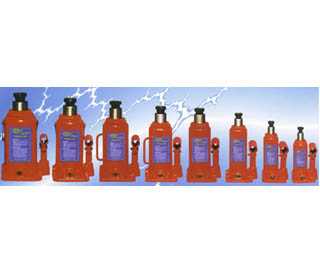

Specifications of JTxx02 Hydraulic Bottle Jack:
| Model | order Model | Lifting Capacity | Min. height | Lifting Height | Adjust Height | Max. Height | Net Weight | Gross Weight | Measurement | Quantiy/Case | Quantiy/1x20" |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ton | mm | mm | mm | mm | kg | kg | cm | pcs | pcs | ||
| JT0202 | T010202 | 2 | 158 | 90 | 60 | 308 | 2.3 | 25 | 52x25.5x19 | 10 | 7000 |
| JT0302 | T010203 | 3 | 180 | 110 | 60 | 350 | 3.3 | 28 | 46x26.5x22.5 | 8 | 5000 |
| JT0502 | T010205 | 5 | 197 | 125 | 60 | 382 | 4.4 | 29 | 37x27.5x22.5 | 6 | 3720 |
| JT0802 | T010208 | 8 | 205 | 125 | 60 | 390 | 5.4 | 24 | 29.5x27.5x22.5 | 4 | 2400 |
| JT1002 | T010210 | 10 | 205 | 125 | 60 | 390 | 6 | 26 | 30.5x29.5x24 | 4 | 2180 |
| JT1202 | T010212 | 12 | 214 | 125 | 60 | 399 | 7.2 | 16 | 30.5x16.5x24 | 2 | 1700 |
| JT1602 | T010216 | 16 | 225 | 140 | 60 | 425 | 8.3 | 19 | 31.5x17x24.5 | 2 | 1560 |
| JT2002 | T010220 | 20 | 244 | 145 | 60 | 449 | 10.5 | 23 | 34.5x19.5x27 | 2 | 1500 |
| JT3202 | T010232 | 32 | 285 | 180 | / | 465 | 14.6 | 31 | 37.5x19x31 | 2 | 900 |
| JT5002 | T010250 | 50 | 285 | 180 | / | 465 | 22 | 23 | 23x19x31 | 1 | 480 |
| JT10002 | T0102100 | 100 | 335 | 180 | / | 515 | 76 | 78 | 32.5×26.5×30 | 1 | 230 |
