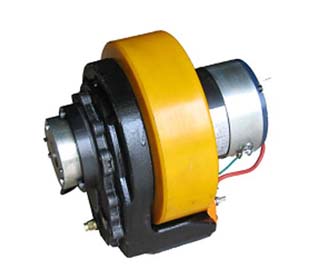

3EL drive wheel is a multi-purpose mechanism, which makes the power, the transmission and the brake integrated. The axial of the electromotor is coaxial with the drive shaft and they are connected by a two levels axis parallel cylindrical gears decelerator. >
So this device features with compacted structure, small overall dimension, facile to fit in the transporting vehicles inside. In order to meet with the user's all kinds of needs. This driving wheel could use two kinds of specifications electromotor which are labeled with 3EL, 3ELA for distinguish.
Specifications of 3EL-DC(0.75) (1.0)(1.2):
| Model | 3EL-DC(0.75) | 3EL-DC(1.0) | 3ELA-DC(1.2) | |
|---|---|---|---|---|
| Motor Rated Power | Kw | 0.75 | 1 | 1.2 |
| Battery Voltage | v | 24 | 24 | 24 |
| Gear Ratio | l | ~1:30 | ~1:30 | ~1:30 |
| Max. wheel Load | kg | 800 | 800 | 800 |
| Wheel Diameter | mm | 252 | 252 | 252 |
| Max. turning Radius | mm | 160 | 160 | 160 |
| Max. wheel Speed | r/min | 100 | 100 | 100 |
| Max. wheel Torque | N. m | 280 | 280 | 350 |
| Brake Torque | N. m | 8 | 8 | 8 |
1KG=2.2LB 1INCH=25.4MM
