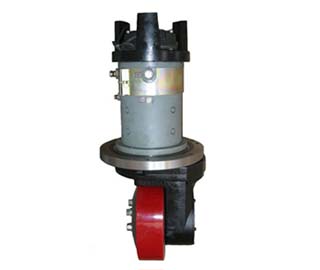

6EL drive wheel is a multi-purpose mechanism, which makes the power, the transmission and the brake integrated. The electromotor is arranged vertical with the drive shaft and they are connected by a two levels gears decelerator. One level of the decelerator is the Gleason Spiral bevel gears. So this device features with steady transmission, low noise and strong load capacity while operating.
Floating bearing with screw in the outer ring is installed in top of the decelerator and it can be mounted to the frame parts through screws directly. So it is very convenient to disassemble and assemble, what? more it is advantageous to realize the manual and power steering operating.
Specifications of 6EL-DC(1.1):
|Motor Rated Power||Kw||1.1|
|Max. wheel Load||kg||800|
|Max. turning Radius||mm||135|
|Max. wheel Speed||r/min||100-110|
|Max. wheel Torque||N. m||330|
|Brake Torque||N. m||16|
