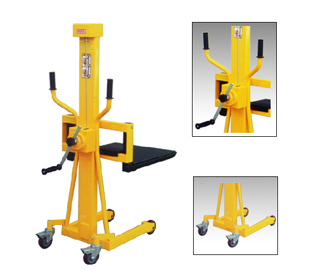

1. Robust, lightweight, steel construction.
2. Maneuverable, extremely easy to use.
3. Cable winch lifting system with full cable housing.
4. Adjustable fork from 132mm to 520mm.
5. Platform is a standard accessory.
Specifications of LS Hand Winch Stacker:
| Model | LS80 | LS150 | |
|---|---|---|---|
| Capacity | (kg) | 80 | 150 |
| Load Centre | (mm) | 250 | 250 |
| Lifting Height | (mm) | 1100 | 1100 |
| Straddle Leg Height | (mm) | 100 | 100 |
| Min. Fork Height | (mm) | 70 | 70 |
| Fork Length | (mm) | 500 | 500 |
| Individual Fork Width | (mm) | 50 | 50 |
| Platform Size | (mm) | 500x530x90 | 500x530x90 |
| Over Adjustable Fork Width | (mm) | 132-520 | 132-520 |
| Effort Force with Load | (N) | 82 | 106 |
| Load Wheel | (mm) | Ø100x30 | |
| Steering Wheel | (mm) | Ø100x30 | |
| Overall Dimensions | (mm) | 865x550x1470 | 830x580x1475 |
| Net Weight | (kg) | 52 | 62 |
Important: Forks MUST be in Max. fork width position when fit platform on two forks.
