Home » Products » Platform and other Stacker » FP Hand Platform Stacker

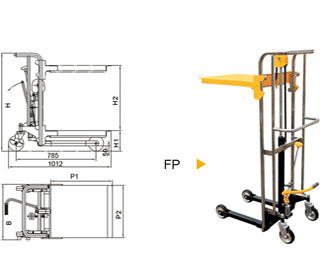

Features of FP Hand Platform Stacker

Platform Stacker
FP0412/FP0485/FP0415.
The unique design combine both the lifting and stacking function.
Enables one person to handle difficult lifting and moving jobs.
Collapsible foot pedal ensures lifting movement comfortably and smoothly.
Equipped with a overload protection valve.
Hand push drive.
Hard chromium plated frame.
Two frame rollers and two steering rollers ensures a stable and safe operation.
Conforms to En1757.

Specifications of FP Hand Platform Stacker:

Model		FP0485	FP0412	FP0415
Capacity Q	kg	400	400	400
Max. height h1	mm	980	1330	1630
Lifting height(h3)	mm	650	1000	1300
Min. platform height h13	mm	200	200	200
Max. platform height h3+h13	mm	850	1200	1500
Max. Width	mm	590	590	590
Platform length	mm	650	650	650
Platform width	mm	550	550	550
Rear roller	mm	Φ150x40	Φ150x40	Φ150x40
Load roller	mm	Φ150x45	Φ150x45	Φ150x45
Weight	kg	70	76	86
