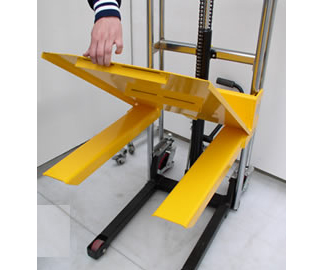

Special design combines lifting, transporting and stacking functions together.
With Min. platform height only 85mm.
Equipped with a overload protection valve.
Hard chromium plated frame.
Conforms to En1757-1.

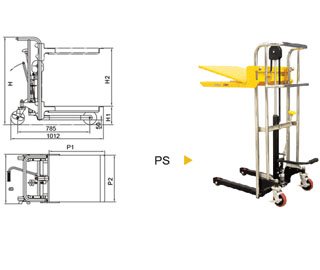

Specifications of PS Hand Platform Stacker:
| Model | PS0485 | PS0412 | PS0415 | |
|---|---|---|---|---|
| Capacity Q | kg | 400 | 400 | 400 |
| Max. height h1 | mm | 955 | 1425 | 1725 |
| Lifting height h3 | mm | 765 | 1115 | 1415 |
| Min. platform height h13 | mm | 85 | 85 | 85 |
| Max. platform height h3+h13 | mm | 850 | 1200 | 1500 |
| Max. Width | mm | 600 | 600 | 600 |
| Platform length | mm | 650 | 650 | 650 |
| Platform width | mm | 576 | 576 | 576 |
| Size of forks | mm | 650x110 | 650x110 | 650x110 |
| Steering roller | mm | Φ127x40 | Φ127x40 | Φ127x40 |
| Load roller | mm | Φ75x40 | Φ75x40 | Φ75x40 |
| Weight | kg | 75 | 81 | 91 |
