1. Safe, nimble and stable.
2. Heavy duty design, compact in structure, easy to operate.
3. Light weight, firm flame, large capacity.
4. The accumulator can ensure longtime work.

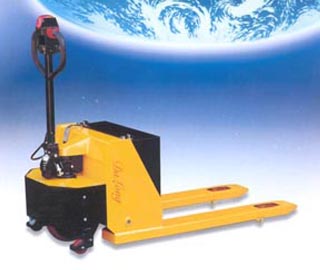

Specifications of CBD-A Semi-electric Pallet Truck:
| Model | CBD-1.2A | CBD-1.5A | CBD-2.0A | |
|---|---|---|---|---|
| Capacity Q | Kg | 1200 | 1500 | 2000 |
| Min. /Max. fork height | mm | 85/205 | ||
| Fork overall width m | mm | 520/680 | ||
| Fork width | mm | 160 | ||
| Fork length | mm | 1150 | ||
| Load center | mm | 650 | ||
| Wheelbase | mm | 1390 | ||
| Net weight | Kg | 250 | 260 | 280 |
| Front wheel | mm | Φ85x75Φ140x80 | ||
| Balance wheel | mm | Φ100x45 | ||
| Drive wheel | mm | Φ260x90 | ||
| Overall dimension L×W×H | mm | 1800×680×1310 | 1800×680×1310 | 1800×680×1310 |
| Battery | An/V | 60/24 | 120/24 | 160/24 |
| Traveling speed(loaded) | mm | 4.6 | 4.2 | 4.2 |
| Turning radiusWa | mm | 1650 | 1650 | 1650 |
