1. Electric-powered travel, hydraulic lift.
2. Top-quality electric control system, operates easily and responds well.
3. Heavy duty design with high-quality, small weight and dimension make it smart.
4. With large volume of battery, makes the machine long-time working.

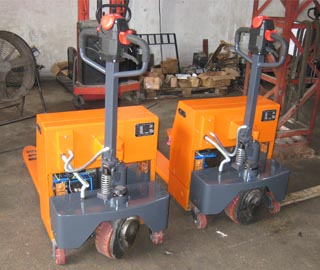

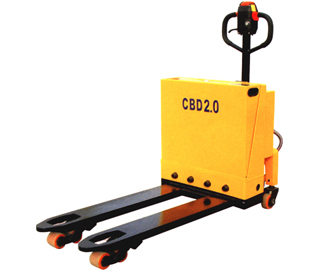

Specifications of CBD-B Semi-electr Pallet Truck:
| Model | CBD-1.0B* | CBD-1.5B | CBD-2.0B | CBD-3.0B | |
|---|---|---|---|---|---|
| Capacity Q (Kg) | Kg | 1000 | 1500 | 2000 | 3000 |
| overall width B | mm | 600 | 600 | 720 | 720 |
| Fork overall width m | mm | 520/680 | |||
| Front wheel | mm | Φ85×75 (tandem) orΦ140×80 (single) | |||
| Balance wheel | mm | Φ100×45 | |||
| Drive wheel | mm | φ260×90 | |||
| Turing Radius | mm | 1350 | |||
| Battery | An/V | 60/24 | 120/24 | 120/24 | 120/24 |
| Traveling Speed (Unloaded/loaded) | km/h | 6.7/4.5 | 6.5/4.2 | 6.3/4.0 | 6.0/3.8 |
| Net Weight | Kg | 223 | 273 | 285 | 285 |
| Overall Dimension | mm | 1530x600x1240 | 1530x600x1240 | 1530x720x1240 | 1530x720x1240 |
1, (*1) mean that the CBD1.0B with bult-in Charger.
