We can supply different kinds of vehicle lifting trail boards and lift tables.

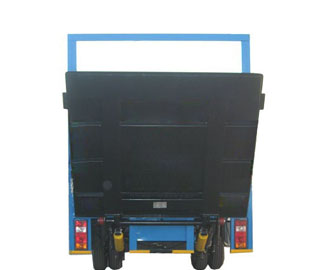

The QWB automobile ascends and descends tail plank characteristics:
1, The QWB tail plank is five urns of full-automatic equilibrium system products.
The liquid presses saving memory function of the intelligence that the system has
opposite position, operating a more equilibrium safety.
2, The QWB tail plank liquid presses a pump and oil urn, seals completely a piece
and takes care of main pieces, such as road and the electricity system. The quality
is promised, and the function is outstanding.
3, Outside and inside the car is a set of electricity to control device, easy to
operate.
4, The special tail plank liquid press system establishes a liquid system to press
flameproof valve, can avoid surprised loss effectively.
5, The QWB tail plank passes the strict sour washing, turning, and roast painting.
The surface processing makes the tail plank rustproof, anticorrosive, and outward
appearance beautiful.
6, The QWB tail plank has various specifications to be provided for you to choose.
The tail plank can be in different sizes according to the actual need.
Specifications of QW & QWB Automobile Tailboard:
Model | NL-QWB1.0 | NL-QWB1.5 | NL-QW2.0 | NL-QW2.5 | Remarks |
---|---|---|---|---|---|
Platform size(mm) | 1700*1600 | 1800*1600 | 2000*1800 | 2300*1800 | It can be made according to the customer's damands |
1800*1600 | 1800*1700 | 2100*1800 | 2400*1800 | ||
1800*1700 | 1900*1700 | 2200*1800 | 2500*1800 | ||
1900*1700 | It can be made according the width of the vehicle | ||||
Capacity(Kg) | 1000 | 1500 | 2000 | 2500 | / |
Self weight(Kg) | 350 | 450 | 500 | 550 | / |
Motor power(Kw) | 1.6 | 1.6/2.2/2.5 | 2.2/2.5 | 3 | / |
Motor | DC12V-24V/100AH-160AH | / | |||
Frame Arm length(mm) | 600/750/800 | 750/800/900/950 | 900/950 | 900/950 | / |
Frame Inner width(mm) | 900 | 900/1010 | 900/1010 | 900/1010 | / |
Using height from the vehicle box to ground(mm) | 700-1550 | / | |||
Average lifting speed(mm/sec) | 60-80 | Speed can be controlled | |||
Switch speed(mm/sec) | 10 | / | |||
Hydraulic oil | 68#Anti-wear hydraulic oil | / | |||
Platform working angle | 5Degrees -9Degrees | / |
