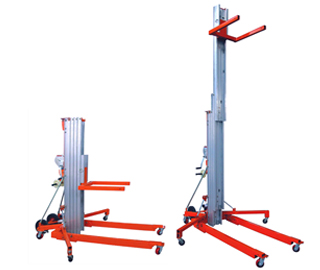

LGA Series product is a manual operating lift platform.
There are multiple base, winch and load accessories to choose from.
The Max. rated load is 454 kg, It can raise up to 7.4 meters.
It can be fully used in the construction, industrial, storage, exhibition, stage construction, the advertising industry, central air-conditioning ducts and other pipes, etc. use.
Specifications of Mobile Mast Column Aerial Working Platform:
| Model | LGA-10 | LGA-15 | LGA-20 | LGA-25 | |
|---|---|---|---|---|---|
| Lifting height | mm | 3000 | 4500 | 6000 | 7400 |
| Working length | mm | 1460 | 1840 | 2040 | 2040 |
| Rated load | kg | 454 | 363 | 363 | 295 |
| Overall length | mm | 740 | 740 | 740 | 790 |
| Overall width | mm | 800 | 800 | 800 | 800 |
| Overall height | mm | 1990 | 1990 | 1990 | 1990 |
| Weight | kg | 117.9 | 143.8 | 183.7 | 204.1 |
