With high strength aluminum alloy material, effective for less deflection and wavering during elevation.
With imported hydraulic pressure pump valve and electric motors with CE certification of E. U. Stable operation and little noise.
Every product mounted with DC power on basis of customer’s requirement.
Independent electric unit with protection for electric leakage or overloading.
Solid-state relay, no contact, no sparks, dust-proof, vibration-tolerance, GTC-6B, GTC-7B with safety inserted legs to assure the protection of the operator.
With parts convenient for the loading vehicle to better the loading and unloading and the mobile work.

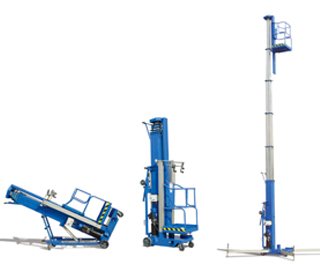

Specifications of GTC-H Mast Aerial Work Platform:
Model | Platform Capacity | Max. Height of Platform | Max. Work Height | Store Dimension | Power Voltage | Motor Power | Total weight |
---|---|---|---|---|---|---|---|
kg | m | m | m | v | kw | kg | |
GTC6B | 100 | 6.4 | 8.2 | 1.30×0.76×2.00 | 220 | 1.5 | 310 |
GTC7B | 100 | 7.2 | 9 | 1.38×0.76×2.00 | 220 | 1.5 | 330 |
GTC9B | 100 | 9.2 | 11 | 1.38×0.76×2.00 | 220 | 1.5 | 350 |
GTC12H | 100 | 12.15 | 14 | 1.25×0.74×2.85 | 220 | 1.5 | 450 |
GTC14H | 100 | 14.5 | 16.3 | 1.25×0.74×3.31 | 220 | 1.5 | 550 |
