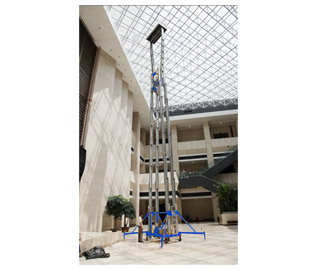

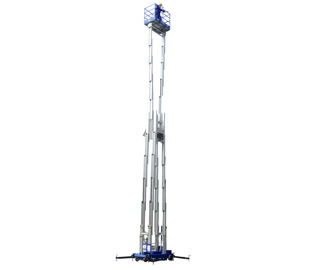

Two sets of independent upper and lower lifting structures;
Multi groups of aluminum alloy mast combination for lower lifting structure and double mast combination for upper lifting structure;
The two structures can be shifted automatically with better operation and stability;
The guardrail can be entirely hung on the platform without occupying too much room, offering easy in passing through lower passage;
Its overall dimension is the smallest among similar products and it can be used both outside and indoor;
Electric driving unit is equipped for moving;
Power Supply: Single phase AC;
Traveling Method: powered propeller as standard;
manual traveling as option;
Available accessories: uninterruptible power supply;
Conforms to CE, one of National Key New Products 2001.
Specifications of GTWY Mast Aerial Work Platform (Multi Masts):
Series | Model-Code | Max. Platform Height H1 |
Max. Working Height H2 |
Loading Capacity |
Number Of Person Allowed On Platform |
Platform Dimension L2×W2 |
Outrigger Footprint L1×W1 |
Power Supply |
Power Input | Stowed Dimension L×W×H |
Machine Weight (for reference) |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|
For Lifting |
For Traveling |
|||||||||||
m | m | kg | mm | mm | v | kw | kw | mm | kg | |||
42 | GTWY14-4214A | 14 | 15.7 | 200 | 1 | 1350×860 | 2850×2620 | AC220 | 0.75/1.5 | N/A | 1690×1130 ×1920 |
1150 |
GTWY14-4214B | 14 | 15.7 | 200 | 1 | 1350×860 | 2850×2620 | 0.75 | 2260×1250 ×1920 |
1450 | |||
GTWY16-4216 | 16 | 17.7 | 160 | 1 | 1480×860 | 2950×2700 | 2260×1250 ×2090 |
1650 | ||||
GTWY18-4218 | 18 | 19.7 | 160 | 1 | 3050×2780 | 2260×1250 ×2180 |
1800 | |||||
GTWY20-4220 | 20 | 21.7 | 100 | 1 | 700×700 | 4060×3120 | 3120×1390 ×2450 |
2000 | ||||
GTWY22-4222 | 22 | 23.7 | 100 | 1 | 4060×3450 | 3120×1660 ×2850 |
2200 |
Remark:
1. Series 42 mean "Multi mast", Seriec 20C mean "Vehicle-mounted chassis", Series 40z mean "self-propelled".
2. Technical data is origin from nature sciecce, and is verified by practice application.
3. The terrace increment extension, revolve the function to transport the size to go another assurance at the request of press design behind.
4. The power supply adopts the battery type direct current, the conveyance size and other parameterses have the variety slightly.
