All welded steel frame, durable and reliable.
AC, DC motor or foot pump is available.
Deal for portable work station.
Integrated power pack, heavy-duty cylinder with velocity fuse and pressure compensated down speed control valve.
Special sizes are available upon request.

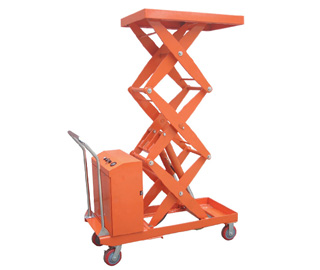

Specifications of CYTD-S Double Scissors Table Truck:
| Model | CYTD350S | CYTD800SD | CYTD1000SD | |
|---|---|---|---|---|
| Load Capacity | kg | 350 | 800 | 1000 |
| Max. Height | mm | 1320 | 6550 | 1700 |
| Min. Height | mm | 405 | 1800 | 500 |
| Table Size | mm | 910×500×56 | 900x580x60 | 1200x610x60 |
| Handle Height | mm | 1101.5 | 1101.5 | 1101.5 |
| Lifting Speed | s | ≤ 15 | ≤ 18 | ≤ 18 |
| Lowering Speed | s | ≤ 15 | ≤ 20 | ≤ 20 |
| Motor | w | 800 | 1500 | 800 |
| Battery | V/Ah | 24/33 | 24/40 | 24/33 |
| Battery Charger | 24V/5A | 24V/5A | 24V/5A | |
| Weight | kg | 150 | 360 | 334 |
| Packing Size | mm | 1250x530x740 | 1250x620x1980 | 1600x620x840 |
