Fully sealed & maintenance-free battery.
Reliable brakes ensures the stability and safety.
Lightweight yet robustly constructed.
Conforms to CE Normal.

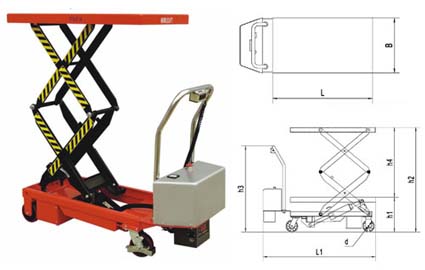

Specifications of ETF Electric Table Lift (new):
| Model | ETFD35 | |
|---|---|---|
| Capacity | kg | 350 |
| Max. table height h2 | mm | 1300 |
| Min. table height h1 | mm | 370 |
| The dimension of table size(L*B) | mm | 910x500x53 |
| Caster Wheel d | mm | Φ125x40 |
| Overall length L1 | mm | 1210 |
| Height Of Handle From The Ground h3 | mm | 920 |
| Lifting speed with load/without load | mm/s | 90/110 |
| Lowering speed with load/without load | mm/s | 100/90 |
| Lifting Cycle(fully charged) | 100 | |
| Battery x 2 | 12v 24Ah | |
| Vertical Travel h4 | mm | 930 |
| Lifting Motor(DC24V KW) | 0.8 | |
| Charger(built-in)24V4A | 8.5Hr | |
| Approx Lifting Speed | s | 10 |
| Net Weight | kg | 142 |
