Skates series:

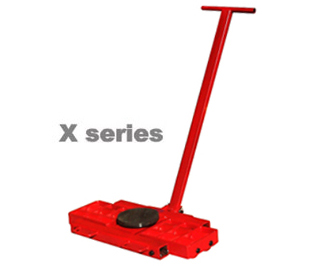

X-Series can balance by itself and walk on an even keel on uneven ground;

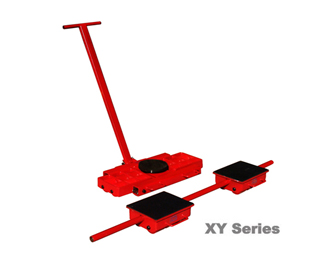

Y-Series is suitable for loading and transportation of heavy objects with different sizes and can be adjustable.
Specifications of X & Y Skates
| Model | No. of Rollers | Dimensions of Turnplate (mm/inch) |
Length of Handle AdjustingLength of Lever (mm/inch) |
Overall Size (mm/inch) |
Capacity(T) | N. w. (kg) | |
|---|---|---|---|---|---|---|---|
| X4+Y4 | X4 | 4 | F150/6 | 800/31.5 | 230x230x110 / 9x9x4.3 |
8 | 28 |
| Y4 | 4 | 140x120/ 5.5x4.7 | 300-1000/ 11.8-39.4 | 170x140x110 / 6.7x5.5x4.3 |
|||
| X8+Y8 | X8 | 8 | F160/6.3 | 1100/43 | 560x420x110 / 22.04x16.5x4.3 |
16 | 72 |
| Y8 | 8 | 200x160/ 7.9x6.3 | 400-1300/ 15.7-51.2 | 200x200x110 / 7.9x7.9x4.3 |
|||
| X12+Y12 | X12 | 12 | F180/7.1 | 1100/43 | 750x450x110 / 29.5x17.7x4.3 |
24 | 100 |
| Y12 | 12 | 220x180/ 8.7x7.1 | 400-1400/ 15.7-55 | 256x200x110 / 10x7.9x4.3 |
|||
| X16+Y16 | X16 | 16 | F200/7.9 | 1100/43 | 936x500x110 / 36.9x19.7x4.3 |
32 | 124 |
| Y16 | 16 | 240x200/ 9.4x7.9 | 400-1500/ 15.7-59 | 310x220x110 / 12.2x8.7x4.3 |
|||
| X18+Y18 | X18 | 18 | F200/7.9 | 1500/59 | 780x550x110 / 30.7x22x4.3 |
36 | 138 |
