1. Max. load weight: 1, 000kg (2, 200lbs).
2.12V DC hydraulic system.
3. Operates smoothly up and down.
4. Compact design and top quality mast construction.
5. Safety guard on load roller and steering wheel.
6. Light and easy manual steering system.
7. Combines power and simplicity.
8. Ideal for small workspaces and production areas.

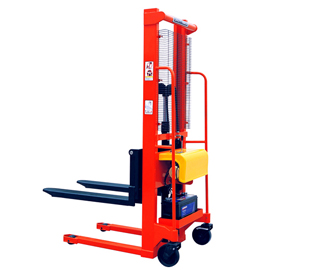

CTDS1000-16 SEMI-ELECTRIC STACKER
This Stackers combine power and simplicity into these walk behind type units. The Stackers are ideal for small workspaces and production areas. They can lift up to 1, 000kg (2, 200 lb) loads with ease. The forks operate smoothly up and down by hydraulic system powered by a 12V DC Motor.
Specifications of CTDS Semi-electric Stacker:
| Model No. | CTDS1000-16 | |
|---|---|---|
| Rated Capacity | kg | 1000 |
| Lifting Height | mm | 1600 |
| Fork Length | 1000 | |
| Fork Width | 310-660 | |
| Load Center | 400 | |
| Minimum Turning Radius | 1350 | |
| Lifting Motor | V/Kw | 12/1.5 |
| Battery | V/Ah | 12/100 |
| Charger | V/Ah | 12V 50Hz |
| Overall Length(A) | mm | 1500 |
| Overall Width(B) | 850 | |
| Overall Height(H1) | 2000 | |
| Net Weight | kg | 272 |
*Fix forks available
