Manual high lift truck with electric lifting(later"truck"only) is designed for the transport, handling and stacking of material which is placed on pallets. It enables to offtake and to base pallets to the maximum lifting height of the truck by using electro hydraulic aggregate. It decreases physical strain of person manipulating with material.

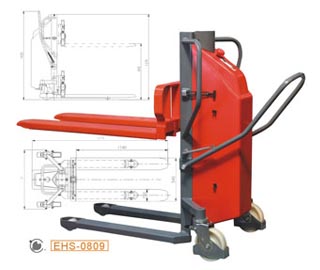

Specifications of EHS Semi-electric Stacker (new):
| MODEL | EHS 0809/EHS-T 0809 | |
|---|---|---|
| Capacity | kg | 800 |
| Length | mm | 1690 |
| Width | mm | 730 |
| Height | mm | 1420 |
| Length of the forks | mm | 1140 |
| Width of the fork | mm | 150 |
| Min. height over the floor | mm | 87 |
| Forks width | mm | 540 |
| Spacing between the forks | mm | 240 |
| Truck weight | kg | 271 |
| Lifting height | mm | 900 |
| Bearing surface of the forks | mm | 1140x540 |
| Forks tilting angle | ° | 20 |
| Lifting speed without load | mm | ≥0.07 |
| Lifting speed with load | mm | ≥0.05 |
| Lowering speed with a load | controllable | |
| Clearance above floor | mm | 30 |
| Traction Accu. battery | 2x12V/60Ah | |
| Electro hydraulic aggregate | 12V, 700W |
