Home » Products » Pallet Stacker » Semi-electric Stacker » SPN Semi-electric Stacker

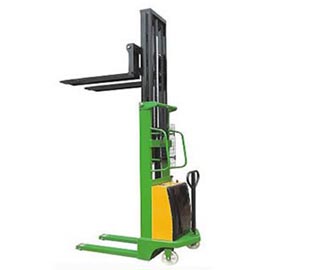

SPN Semi-electric Stacker PDF

Detailed parameters and tables

Features of SPN Semi-electric Stacker

1. The product has passed the CE certification.
2. It is a half electric forklift for load and unload and short-distance transportation.
3. The operation is very easy.
4. It is reliable. There is no noise and pollution.
5. The malfunction rate is low.
6. There are complete specifications for forks to meet the different demands of the customers.

Specifications of SPN Semi-electric Stacker :

Model		SPN1016	SPN1025	SPN1030	SPN1033	SPN1035
Rated carrying capacity Q	Kg	1000	1000	1000	1000	1000
Fork Min Height h2	mm	85	85	85	85	85
Fork Max Height h3	mm	1600	2500	3000	3300	3500
Mast Min Height h1	mm	1980	1830	2080	2230	2330
Fork size	mm	150/160x60	150/160x60	150/160x60	150/160x60	150/160x60
Fork length L	mm	900/1100	900/1100	900/1100	900/1100	900/1100
Fork over all width (adjustable/fix)b5	mm	330~640/550
Turning radius Wa	mm	1350	1350	1350	1350	1450
N. W	kg	396	443	466	495	500
Fork wheel	mm	Φ74x70	Φ74x70	Φ74x70	Φ74x70	Φ74x70
Large wheel	mm	Φ180x50	Φ180x50	Φ180x50	Φ180x50	Φ180x50
Accumulator V/Ah(5hautonomy)		12/150	12/150	12/150	12/150	12/150
Lifting motor power(kw)		1.5	1.5	1.5	1.5	1.5

Model		SPN1516	SPN1520	SPN1525	SPN1530	SPN1535
Capacity Q	kg	1500	1500	1500	1500	1500
Load center C	mm	400	400	400	400	400
Max fork height(H)	mm	1600	2000	2500	3000	3500
Max body height(H2)	mm	2060	2560	3060	3560	4060
Fork length(L)	mm	1000	1000	1000	1000	1000
Fork outer width(E)	mm	300-680	300-680	300-680	300-680	300-600
Min turning radius(R)	mm	1350	1350	1350	1450	1450
Wheelbase(Y)	mm	1185	1185	1185	1185	1185
Front wheel cardinal distance(X)	mm	316	316	316	316	316
Lifting Motor	V/kw	12/1.5-1.6	12/1.5-1.6	12/1.5-1.6	12/1.5-1.6	12/1.5-1.6
Battery	V/Ah	12/120-150	12/120-150	12/120-150	12/120-150	12/120-150
Charger	V/A	12月15日	12月15日	12月15日	12月15日	12月15日
Overall length	mm	1660	1660	1660	1660	1660
Overall width (A)	mm	810	810	810	930	930
Overall height (B)	mm	1330	1580	1830	2080	2330
Net Weight

Model		SPN2016	SPN2020
Capacity Q	kg	2000	2000
Load center C	mm	400	400
Lifting height h	mm	1600	2000
Fork length l	mm	1000	1000
Fork width b5	mm	310~820	310~820
Minimum Turning radius Wa	mm	1350	1350
Lifting Motor V	Kw	12/1.5~1.6	12/1.5~1.6
Battery V/Ah	V/Ah	12/150	12/150
Charger	V/Ah	12.0/15	12.0/15
Overall length l1	mm	1670	1670
Overall width b	mm	810	810
Overall height h1	mm	1580	1580
Net Weight	kg	472	472
