Made of high quality steel and is designed to be durable, reliable and easy-to-use.
Electric controlling system is imported from Europe.
With compact structure and gives a balanced lifting and lowering.
With a big capacity.
Conforms to EN1570 and BSEN60204-1.

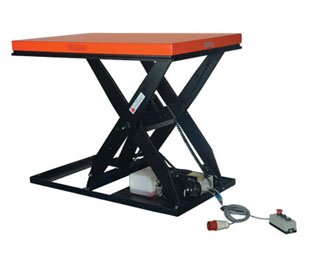

Specifications of HIW Electric Static Lift Table:
| Model | HIW1.0EU | HIW2.0EU | HIW4.0EU | HIW3.0EU | |
|---|---|---|---|---|---|
| Capacity | Kg | 500 | 1000 | 2000 | 3000 |
| Lowered Height c | mm | 190 | 190 | 190 | 220 |
| Raised Height h | mm | 1010 | 1010 | 1010 | 1020 |
| Platform Size(L*B) | mm | 1300x800 | 1300x800 | 1300x800 | 1300x800 |
| Lifting Time | s | 15 | 25 | 40 | 26 |
| Lifting speed with load | mm/s | 55 | 40 | 22 | 30 |
| lowering speed with load | mm/s | 40 | 35 | 33 | 40 |
| Motor | KW | 0.75 | 0.75 | 0.75 | 1.5 |
| Net Weight | Kg | 160 | 220 | 280 | 320 |
