Our large table lifting platform uses high quality pump station, so goods can be lifted stably.
In the event that platform encounters obstacles during descending process, the safety barrier strip under the
platform can ensure the safety.
The anti-clamping scissor forks can prevent injures.
The hydraulic platform is provided with overload protection function, ensuring the safety and reliability.
The electric lifting platform is fitted with safety wedge block, providing convenience for maintenance.
With super large table board, this large table lifting platform can be used to lift large size goods.
It is widely used for manufacturing and repairing work.
The large table lifting platform conforms to European EN1757-2 standard and American ANSI/ASME safety standard.

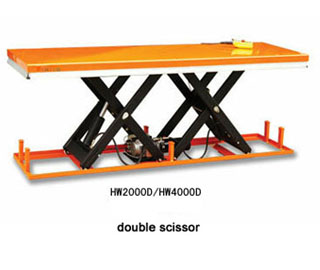

Specifications of HW-L & HW-D large Electric Static Lift Table:
| Model | HW500L | HW501L | HW502L | HW2000D | HW4000D | HW8000D | |
|---|---|---|---|---|---|---|---|
| Capacity | kg | 500 | 500 | 500 | 2000 | 4000 | 8000 |
| Platform size | mm | 2000×800 | 1300×600 | 1300×800 | 2500×820 | 2500×850 | 3000×1200 |
| Base size | mm | 1615×680 | 1210×585 | 1210×585 | 2460×640 | 2450×785 | 2950x1050 |
| Table-board | mm | 200/1000 | 180/1000 | 180/1000 | 205/1000 | 230/1000 | 240/1050 |
| Min/Max. height | |||||||
| Lifting Time | s | 16-26 | 10-15 | 10-15 | 36-46 | 26-36 | 25-36 |
| Power parameter | 380/50HZ | 380/50HZ | 380/50HZ | 380/50HZ | 380/50HZ | 380/50HZ | |
| N. W | kg | 193 | 121 | 131 | 265 | 360 | 420 |
