Heavy duty design, 380V/50HZ AC power source.
The high quality pump station enables the electric lifting platform to lift goods stably.
If the platform encounters obstacles during its descending process, the safety barrier strip under the platform
can prevent the platform from further descending.
This hydraulic platform is provided with anti-clamping function and overload protection function.
It is fitted with safety wedge block for easy maintenance.
The electric lifting platform can be used to facilitate warehousing, transporting, manufacturing and
repairing works.
It conforms to European EN1757-2 standard and American ANSI/ASME safety standard.

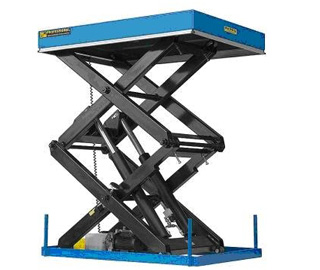

Specifications of ETW Electric Static Lift Table:
Model | ETW1000 | ETW2000 | ETW4000 | |
---|---|---|---|---|
Capacity | Kg | 1000 | 2000 | 4000 |
Platform Size | mm | 820×1300 | 850×1300 | 1700×1200 |
Base Size | mm | 640×1240 | 478×1220 | 1600×900 |
Table-board | mm | 305/1700 | 360/1780 | 400/2050 |
Min/Max. height | ||||
Lifting time | s | 35-45 | 35-45 | 55-65 |
Power | 380V/50Hz, AC2.2KW | 380V/50Hz, AC2.2KW | 380V/50Hz, AC2.2KW | |
N. W | Kg | 210 | 295 | 520 |
