1. Remote power system, easy for controlling, convenient for maintenance.
2. Electric controlling box with up, down, reverse.
3. Lowerest height is easy for loading goods.
4. Double cylinder scissor design makes the rise and fall of the large capacity safe.
5. Specially designed in "U" shape for handling pallets and boxes.
6. Platform work: up --reverse--level--down.
7. Electric controlling system is imported from Italy.
8. Conforms to EN1570 and BSEN60204-1.

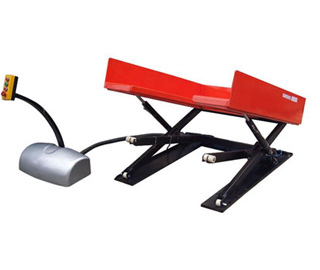

Specifications of ETU-F Electric Static Lift Table:
| Model | ETU-800F | |
|---|---|---|
| Rated capacity | Kg | 800 |
| Min height h | mm | 80 |
| Max height h1 | mm | 760 |
| Platform size(L*B) | mm | 1450x1140 |
| Platform size(L1xB2) | mm | 1050x585 |
| Lifting time | s | 18 |
| Lifting speed with load | mm/s | 42 |
| Lowering speed with load | mm/s | 48 |
| Turning angle | 。 | 45 |
| Motor | KW | 0.75 |
| Net weight | Kg | 280 |
