1. The hydraulic pump uses the newest technology.
2. Special C-shaped steel helps provide strength and rigidity.
3. Adjustable forks for various needs.
4. Save time and manpower.
5. Conforms to CE safety standard.
6. Conforms to EN1757-1.

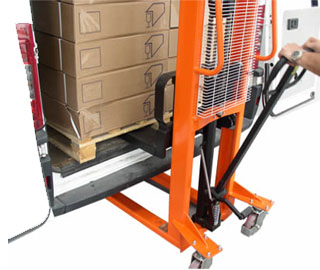

Specifications of CTY-F Hand Stacker:
| Model | CTY1000-16F | CTY1500-16F | CTY2000-16F | CTY1000-25F | CTY1000-30F | |
|---|---|---|---|---|---|---|
| Rated Capacity | kg | 1000 | 1500 | 2000 | 1000 | 1000 |
| Load Center | mm | 400 | 400 | 400 | 400 | 400 |
| Lifting Height | mm | 1600 | 1600 | 1600 | 2500 | 2500 |
| Fork Length | mm | 1000 | 1000 | 1000 | 1000 | 1000 |
| Min. Turning Radius | mm | 1250 | 1250 | 1250 | 1250 | 1250 |
| Fork Width | mm | 550 | 550 | 550 | 550 | 550 |
| Overall Length | mm | 1500 | 1500 | 1500 | 1500 | 1500 |
| Overall Width | mm | 865 | 865 | 865 | 865 | 865 |
| Overall Height | mm | 2100 | 2100 | 2100 | 1810 | 2060 |
| Net Weight | kg | 250 | 260 | 285 | 355 | 370 |
