1. Manual high lift truck(later"truck"only) is designed for transport and material handling, loaded on transporting platforms or pallets, on flat and solid surfaces.
2. It enables to offtake and to base pallets with material to the maximum lifting height of the truck and to tilt a load placed in a fence pallet with max. height 400mm, i. e. with the position of the center of gravity 200mm over forks by ±20°.
3. It decreases physical strain of person manipulating with material.

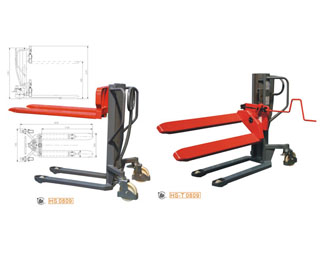

Specifications of HS Hand Stacker:
ITEM/TYPE | HS 0809/HS-T0809 | |
---|---|---|
Capacity | kg | 800 |
Length | mm | 1630 |
Width | mm | 730 |
Height | mm | 1230 |
Length of the forks | mm | 1140 |
Width of the fork | mm | 150 |
Min. height of the forks above the floor | mm | 87 |
forks width | mm | 540 |
Truck weight | kg | 218 |
Lifting height | mm | 900 |
Bearing surface of the forks | mm | 1140x540 |
Tilting angle of the forks | ° | 20 |
Lift with load(per 1 manual stroke) | mm | ≥18 |
Lift without load(per 1 manual stroke) | mm | ≥60 |
