1. The newest design of hydraulic.
2. Special C type mast which is more stable and strong.
3. Quick lift pump to save time and labor.
4. Easy-to-operate controller.
5. Conform to CE standard.

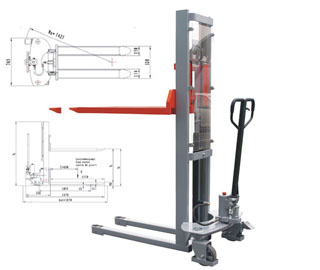

Specifications of FC Hand Stacker:
| Type | FC1008 | FC1016 | |
|---|---|---|---|
| Capacity | kg | 1000 | 1000 |
| Net weight | kg | 202 | 220 |
| Load wheels* | PUR/PUR | PUR/ | |
| Steering wheel size front | Φ(mm) | 180x50 | 180x50 |
| Load wheel size rear | Φ(mm) | 80x55 | 80x55 |
| Total no. of steering-road wheels | 2/2 | 2/2 | |
| Lift | h3(mm) | 810 | 1510 |
| Lifting height | h2(mm) | 900 | 1595 |
| Building height | h1(mm) | 1300 | 1965 |
| Quick lift(Last/load<100kg) | (mm) | 50 | 50 |
| Load lift(Last/load>100kg) | (mm) | 17 | 17 |
| Suitable for a mbient temperature | -10°C-+40° | ||
