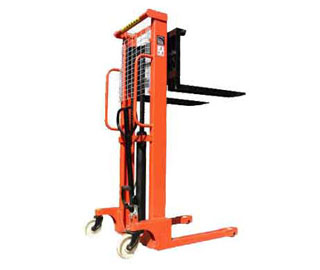

1. A kind of stacker with no motor, cleaner product easy to operate, compact in structure, Suitable for super market, office, warehouse, narrow area, ect.
2. High-quality, labor-saving and quickly.
3. Also ideal for the place where flame-proof is needed.(machineroom, oil store,warehouse,wharf etc.)
Specifications of SFH Hand Stacker:
| Model | SFH2016 | SFH2019 | SFH3015 | ||
|---|---|---|---|---|---|
| Capacity | kg | 2000 | 2000 | 3000 | |
| Lifting height | mm | 1600 | 1900 | 1500 | |
| Loadc enter distance | mm | 600 | 600 | 600 | |
| Fork length | mm | 900 | 900 | 900 | |
| Fork adjustable width | mm | 200-830 | 200-830 | 350-850 | |
| Fork Min. height | mm | 85 | 90 | 105 | |
| Min. turning radius | mm | 1326 | 1350 | 1450 | |
| Dimensions | Length | mm | 1385 | 1640 | 1500 |
| Width | mm | 780 | 730 | 900 | |
| Height | mm | 1980 | 1666 | 1980 | |
| Wheel(Nylon) | Front wheel diameter | mm | 76 | 80 | 82 |
| Rear wheel diameter | mm | 150 | 180 | 180 | |
| N. W | kg | 228 | 360 | 365 | |
1kg=2.2lb1ICH=25.4MM
