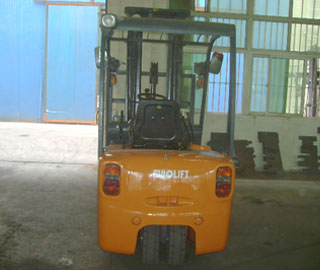

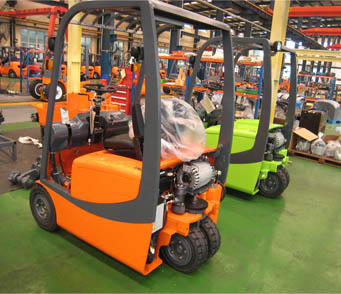

The distinctive features of the new CPDS series electric three-wheel forklift feature:
Versatility of use due to compact design and minimal operating space requirements. Compact dimensions combined with superbmaneuverability.
High stability, both when stationary and cornering, due to long wheelbase, low centre of gravity and wide tyres.
Economy of operation, resulting from minimized maintenance costs, e.g. Low-wear brakes.
SPECIFICATIONS:
1) Rated capacity (kg): 1500, 1800;
2) Max lifting height (mm): 3000, 4000, 4500, 4800, 5500, 6000;
3) Controller model: Italian SME.
Specifications of CPDS AC system Mini Electric Forklift:
| Characteristics | Manufactuer | SINOLIFT FORKLIFT | |||||
| Model | CPDS15 | CPDS18 | |||||
|---|---|---|---|---|---|---|---|
| Rated capacity | kg | 1500 | 1750 | ||||
| Load center | mm | 500 | |||||
| Power type | Battery | ||||||
| Tyres | Super elastic | ||||||
| No. of tyres (front/rear) | 2/2 | ||||||
| Dimensions | Lift height (B) | mm | 3000 | 3000 | |||
| Free lift height (E) | mm | 130 | 130 | ||||
| Fork size (NxUxL) | mm | 35×100×920 | 35×120×920 | ||||
| Upright tilt(forward/backward) (K/T) | deg | 5/7 | |||||
| Overall dimensions | Length to fork face | mm | 2780 | 2830 | |||
| Length to fork face(without fork) (J) | mm | 1860 | 1910 | ||||
| Wheel width | mm | 1050 | |||||
| Overall width (W) | mm | 1070 | |||||
| Height with mast lowered (C) | mm | 1980 | |||||
| Height withmast extended (A) | mm | 3945 | |||||
| Height of overhead guard (D) | mm | 1990 | |||||
| Turning radius(outside) (P) | mm | 1500 | |||||
| Front overhang (G) | mm | 360 | |||||
| Right-angle store aisle (pallet 800x1200, 1000x1200)(RASA) | mm | 2860/3060 | 2910/3110 | ||||
| Performance | Travel speed(with/without load) | km/h | 13.2/14.3 | 12.8/14 | |||
| Lifting speed(with/without load) | mm/sec | 300/470 | |||||
| Lowering speed(with load) | mm/sec | 450 | |||||
| Max. pulling force | KN | 14.84 | 13.08 | ||||
| Grade ability(with load) | % | 20 | 19 | ||||
| Weight | Service mass(including battery) | kg | 3100 | 3260 | |||
| Load per axle | Full load (front/rear) | kg | 4020/560 | 4300/640 | |||
| Without load (front/rear) | kg | 1540/1540 | 1480/1740 | ||||
| Chassis | Tyres size | Front | 18×7-8 PR | ||||
| Rear | 16×6-8 PR | ||||||
| Wheel base (F) | mm | 1295 | |||||
| Wheel tread | Front (Q) | mm | 895 | ||||
| Rear (S) | mm | 205 | |||||
| Ground clearance | Mast (H) | mm | 80/85 | 75/85 | |||
| (full load/without load) | Frame (M) | mm | 100/110 | ||||
| Service brake | Hydraulic | ||||||
| Power unit | Battery | Type | Ironclad plates | ||||
| Voltage/capacity | V/Ah | 48/505 | |||||
| Mass | kg | 850 | |||||
| Electric motor | Traction, power | kw | 5.5×2 | ||||
| Lift, power | kw | 8 | |||||
