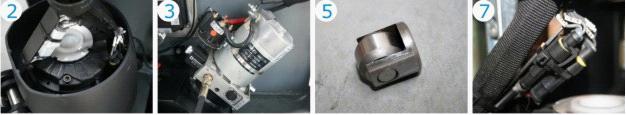

1. The innovative AC system offers quick response, accurate control, impact structure, excellent performance, longer battery service life.
2. The innovative AC motor provides stronger power to keep high speed with full load.8% gradeability, provides increased power to climb docks and floor joints without lurching or stalling.
3. World-class hydraulic power pack, with low noise, few vibration and excellent leak tightness, automatically adjusts the rate of decline whether loaded or unloaded, and ensures smooth lifting.
4. The latest AC controller, high reliability, with regenerated braking, anti-roll back and adjustable settings, ensures the best performance in the different states.
5. High-accuracy mast roller and side inner roller, ensures smoothly lifting.
6. The maximum distance design between caster and driving wheel, increases the stability of the stacker.
7. American AMP connectors with top quality, prevents moisture and contaminants from interrupting truck operation in all environments, plus all the wires and cables reliably protected and fixed, greatly reduces the electrical error.

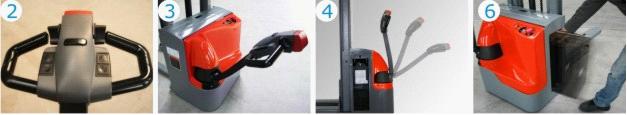

1. The redeveloped tiller head ensures smooth and easy controls of all operation. All the operation of lifting and travelling, will be easily achieved by touching the button switches in the handle.
2. New tiller/handle head design for maximum operation comfort, and control lift/lower/horn buttons positioned to allow operator with either hand.
3. The handle with long arm of force, make the operation easy and lightweight.
4. Creep speed control enabled when tiller/handle in vertical position allows the operator to work more efficient in a confined space.
5. Operating handle is on the side, allowing operators to work with greater vision.
6. Sideway battery design for easy battery replacement.

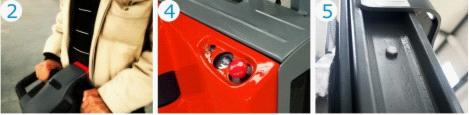

1. Explosion-proof valve installed under lifting cylinder, prevent the mast go down quickly if the oil pipe broken.
2. Anti-roll back available as standard to prevent uncontrolled traveled travel speed or roll-back on ramps when loading and unloading.
3. Anti-skid braking system, stops stacker roll-back on ramp.
4. Easy-Touch emergency plug mounted at up-right side on truck frame help operator take immediate action for any emergent happens.
5. Lift limit switch which mounted on top of mast, stops the hydraulic motor at maximum lift height to reduce unnecessary strain on the lift components and preserve battery life.
6, The truck switches to low speed mode automatically when lifting higher than 0.5m, more secure.

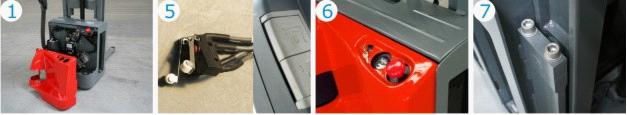

1. One-piece lightweight service access top cover conveniently bolt on and off for easy access to all major and key components, reducing service time when inspection.
2. Vertical motor ensures convenience inspection and maintenance of motor and brake, provide much better maintainability than horizontal motor.
3. Self-Diagnostics provided through the digital display allow easy trouble-shooting with the use of an external handset.
4. AC Drive Motor, brushless, high reliability and performance, drastically reduced maintenance time and labor.
5. One-piece micro switch design, easy for replacement.
6. Hourmeter and BDI (Battery Discharge Indicator) enable the operator to timely recharge.
7. Mast and frame is fabricated structure, easy to install and replace.

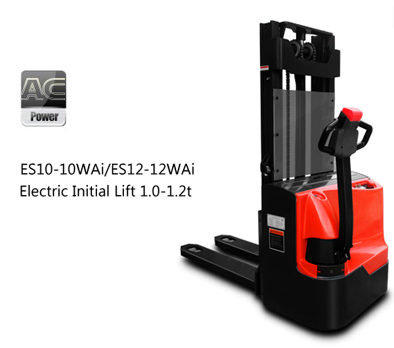

Specifications of ES10-10WA ES12-12WA Bias Electric Stacker:
|Weight, with standard battery||kg||850||850|
|Fork lowered height||mm||85||85|
|Aisle width for pallets 1000*1200 crossways||mm||2370||2370|
|Aisle width for pallets800*1200 lengthways||mm||2303||2303|
|Travel speed loading/without loading||km/h||5.5/6.0||5.5/6.0|
|Voltage/Amp hours, recommended||V/Ah||24/210||24/210|
