SINOLIFT Platform Trucks are widely used for transporting non-palletized loads in big industrial plants, warehouses, post offices, hospitals, etc.
SINOLIFT Platform Trucks are designed to provide comfort to their users. Easy to maintain, they are available with advanced features that make them convenient for use.
Additionally, our trucks have a double platform, which makes them more efficient to carry maximum amount of lightweight goods. Also, their steering axle is designed in such a manner that it ensures constant road grip. Today, we are counted among the key Heavy Duty Platform Trucks Manufacturers and Suppliers in China.

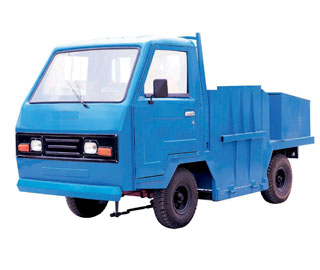

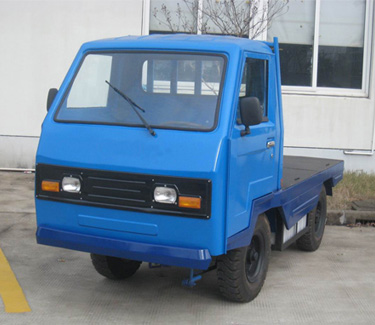

SINOLIFT MHE electric platform trucks are suitable for driving in stores, ware houses, large industries and airports. It is specially constructed for non-standard and non palletised material movements between two locations. It is built with high ground clearance and solid rubber wheels to operate both in and out side the plant.
SINOLIFT MHE Electric platform trucks modular electrical system allows for ease of maintenance, thereby reducing your operating and maintenance costs. Our electric platform trucks can be equipped with a ladder rack, tool boxes, tool cabinets, and a workbench and is an excellent choice for any maintenance application. Features like seat interlock, high pedal disable, and mechanical or hydraulic brakes provide maximum safety during daily operations.
All these features with factory equipped options to ensure highest quality standards, makes electric platform trucks the best value for your utility.
Specifications of SH-BD-M Burden Carrier:
|Rated Load Capacity (Kg)||1000||2000||2000||3000||2000||2000||4000||5000||3000|
|Platform Size (L*W)||1400*1000||1630*1150||2180*1350||2400*1350||2000*1400||2080*1400||2240*1400||2500*1400||2240*1400|
|Min. Height (mm)||560||680||700||820||700||820||820||720||820|
|Outline Size (L*W)||2400*1000||2650*1150||3540*1350||3695*1350||3360*1400||3800*1400||3540*1400||3820*1400||3540*1400|
|Front Wheel Thead (mm)||835||917||1060||1070||1060||1060||1070||1070||1070|
|Rear Wheel Thead (mm)||850||981||1085||1115||1085||1115||1115||1115||1115|
|Wheel Base (mm)||1135||1370||1800||1900||1560||1650||1900||2185||1900|
|Ground Clearance (mm)||100||120||120||140||120||120||140||120||140|
without Load (KM/h)
with Load (KM/h)
|Max. Gradeability (%*m)||5*12||5*12||5*12||5*12||10*12||10*12||5*12||5*12||10*12|
|Driving Motor (KW)||1.35||2.5||2.5||5||3||3||5||6.3||5|
Rated Current (A)
|Battery Voltage (V)||24||40||40||48||48||48||48||48||48|
|Battery Capacity (AH/5hr)||250||250||250||308||250||250||330||440||308|
1, The "S" is meaning of another new design; the "X" is meaning of Narrow type.
2, The "M" is meaning of with Closed Cabin;the "CM" is meaning of with Half Closed Cabin.
3, The "C" is meaning of with long platform in the side; the "F" is meaning of with Calash Cabin.
4, “SHC” is meaning of with scissor lifting device; the “ZD” is meaning of with Load and Unload device.
