Simple, easy way to lift, lower and transport heavy loads with minimum effort. Features adjustable width forks and outrigger legs.
Low effort hand winch equipped with automatic brake systems and adjustable length handle.
Swivel casters feature foot brake to prevent movement.
Optional Steel Platform - Fits H140501. Solid steel construction, Fits over forks. Easily moved.
This compact truck is ideal for loading and unloading trucks where docks do not exist. A favorite with the automotive industry for handling engines and transmissions, this model features an easy to operate winch with an automatic braking system, a safety cage and a floor brake.
Manual lift and propulsion;
Wind the handle clockwise to lift the load;
Turn it anti-clockwise to lower the load;
Twin handles for easy manouvering;
Adjustable winch handle length for different load weights.

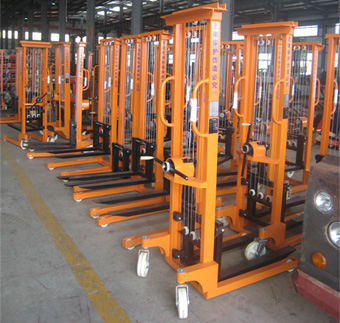

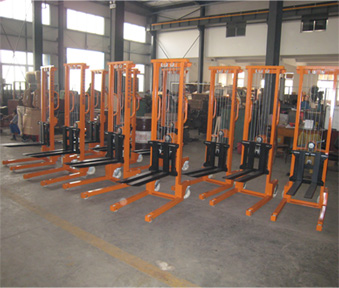

Specifications of CTJ Manual Winch Stacker:
|Model||CTJ300||CTJ500||CTJ1000 / CTJ1000A||CTJ1500|
|Lifting speed (mm/sec)||0~160||0～140||0～60||0～40|
|Lifting height (mm)||1500||1500||1500||1500|
|Outline dimension (mm)||1250x620x1900||1200×620×1990||1260×680×2020||1480×800×2035|
|Fork length (mm)||800||800||800||900|
|Front wheel (mm)||φ90||φ90||φ90||φ90|
|Rear wheel (mm)||φ125||φ180||φ180||φ180|
|Mesh line (mm)||1900||φ2.8～3.5||φ2.8～3.5||φ2.8～3.5|
|Fork outside width (mm)||190～420||190～420||230～530||260～640|
|Outside width of inserting leg (mm)||620||620||680||800|
|Loading center (mm)||400||400||400||450|
|Service Weight (kg)||105||106||240||290|
Remark: With A is mean that with Foot Brake.
