Simple structure ; Good-looking appearance.
One cylinder system guarantees:
1. No risk of oil leakage;
2. No risk of dropping to the second piston suddenly.
Newest handle design:
1. Has a nice appearance;
2. Operates comfortably;
3. Meets ergonomic requirements.
The quick lift function double lift speed for loads weighing 550 lbs or less.
Built-out battery and charger resulting in a low center of gravity and excellent manoeuvrability.
Conforms to CE safety standard
Conforms to EN1757-4.

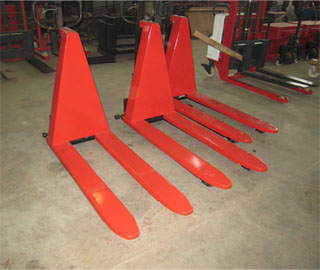

Specifications of NPSL Super Low Pallet Truck:
Model | NPH1000 | NPH1500 | NPH1000(N) | |
---|---|---|---|---|
Capacity | (kg) | 1000 | 1500 | 1000 |
Total lift height | (mm) | 800 | 800 | 800 |
Lowered fork height | (mm) | 85 | 85 | 85 |
Size of fork | (mm) | 162x50 | 162x50 | 162x50 |
Fork length | (mm) | 1150 | 1150 | 1150 |
Width over the forks * | (mm) | 520/550/685 | 520/550/685 | 550/680 |
Height of handleless | (mm) | 975 | 1050 | 975 |
Steering wheel | (mm) | Ø150x50 | Ø150x50 | Ø180x50 |
Fork wheel | (mm) | Ø74x50 | Ø74x50 | Ø74x50 |
Truck weight | (kg) | 112 | 125 | 133 |
pcs/20" container | (pcs) | 120 | 100 | 72 |
Remark:
1. Fork length can be changing with special requirments.
2. NPH1000(N) is one-clyinder-system.
